Multiplication Trainer
Multiplication Trainer
I designed a simple code so that my son could memorize his tables. This code generates random numbers between 2 and 12 and asks for the product of the 2 numbers. You need to enter the answer and then press the # key. If you answer correctly it will display a message with the correct answer for 3 seconds and then move on to asking a new question. If you answer incorrectly, it will display an appropriate message with the correct answer for 5 seconds and move on to asking the next question.

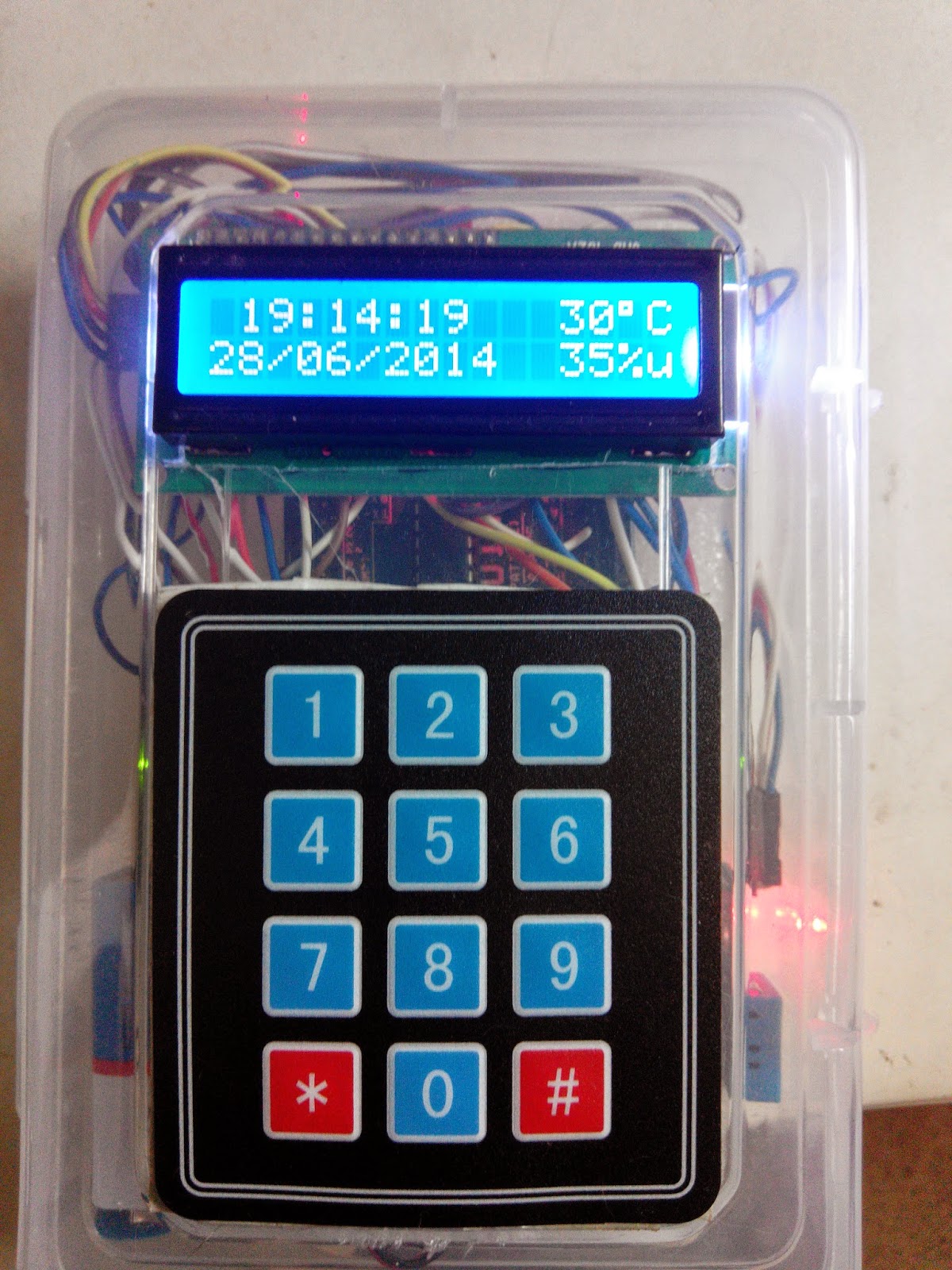

It also displays the date, time, temperature and humidity when you press the * key for 10 seconds.
Below are some images -
Code -
#include <dht.h>
#include <Wire.h>
#include <LCD.h>
#include "RTClib.h"
#include <LiquidCrystal_I2C.h>
#include <Keypad.h>
LiquidCrystal_I2C lcd(0x20, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE); // Addr, En, Rw, Rs, d4, d5, d6, d7, backlighpin, polarity
RTC_DS1307 RTC;
#define DHTPIN A2 // what pin we're connected DHT11
#define DHTTYPE DHT // DHT 11
#define dht_dpin A2
dht DHT;
int randNumber1;
int randNumber2;
int answer;
String answerreceived;
int counter;
const byte ROWS = 4; // Four rows
const byte COLS = 3; // Three columns
// Define the Keymap
char keys[ROWS][COLS] = {
{'1','2','3'},
{'4','5','6'},
{'7','8','9'},
{'*','0','#'}
};
// Connect keypad ROW0, ROW1, ROW2 and ROW3 to these Arduino pins.
byte rowPins[ROWS] = { 9, 8, 7, 6 };
// Connect keypad COL0, COL1 and COL2 to these Arduino pins.
byte colPins[COLS] = { 12, 11, 10 };
// Create the Keypad
Keypad kpd = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );
void setup(){
//kpd.addEventListener(keypadEvent);
//Serial.begin(9600);
DHT.read11(dht_dpin);
lcd.begin(16,2);
lcd.backlight();
lcd.setCursor(0, 0);
lcd.print(" Welcome Varun");
delay(2000);
lcd.clear();
Wire.begin();
// part code from http://tronixstuff.wordpress.com/
Wire.beginTransmission(0x68);
Wire.write(0x07); // move pointer to SQW address
Wire.write(0x10); // sends 0x10 (hex) 00010000 (binary) to control register - turns on square wave
Wire.endTransmission();
// end part code from http://tronixstuff.wordpress.com/
RTC.begin();
// RTC.adjust(DateTime(__DATE__, __TIME__));
// if you need set clock... just remove // from line above this
// if (! RTC.isrunning()) {
// Serial.println("RTC is NOT running!");
// // following line sets the RTC to the date & time this sketch was compiled
// RTC.adjust(DateTime(__DATE__, __TIME__));
// }
randomSeed(analogRead(0));
randNumber1 = random(2,13);
randNumber2 = random(2,10);
//answerreceived = Serial.read();
}
void loop() {
char key = kpd.getKey();
//lcd.blink();
//lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Answer this?");
lcd.setCursor(0, 1);
lcd.print(randNumber1);
lcd.setCursor(4, 1);
lcd.print("x");
lcd.setCursor(7, 1);
lcd.print(randNumber2);
// Serial.print(answerreceived);
// answer = randNumber1 * randNumber2;
// Serial.print(answer);
//answerreceived = "";
//char key = kpd.getKey();
if (key){
answerreceived += key;
//Serial.print(answerreceived);
}
if (key == '#') {
//int answerreceived = int(key);
int answer = randNumber1 * randNumber2;
//Serial.println(answerreceived.toInt());
if (answer == answerreceived.toInt()) {
//Serial.print("checking");
lcd.setCursor(0, 0);
lcd.clear();
lcd.print(" Correct!");
lcd.setCursor(0, 1);
lcd.print("Right Ans = ");
lcd.setCursor(12, 1);
lcd.print(answer,DEC);
delay(2000);
lcd.clear();
counter = 0;
randomSeed(analogRead(0));
randNumber1 = random(2,13);
randNumber2 = random(2,10);
answerreceived = "";
}
else
{
lcd.clear();
lcd.print(" Wrong Answer!");
lcd.setCursor(0, 1);
lcd.print("Answer is = ");
lcd.setCursor(13, 1);
lcd.print(answer);
delay(5000);
lcd.clear();
randomSeed(analogRead(0));
randNumber1 = random(2,13);
randNumber2 = random(2,10);
answerreceived = "";
}
}
if (key == '*') {
counter = 0;
while (counter < 11)
{
//Serial.println(key);
DateTime now = RTC.now();
int h = DHT.humidity;
int t = DHT.temperature;
lcd.clear();
lcd.setCursor(1, 0);
if ( now.hour() < 10)
{
lcd.print(" ");
lcd.print(now.hour(), DEC);
}
else
{
lcd.print(now.hour(), DEC);
}
lcd.print(":");
if ( now.minute() < 10)
{
lcd.print("0");
lcd.print(now.minute(), DEC);
}
else
{
lcd.print(now.minute(), DEC);
}
lcd.print(":");
if ( now.second() < 10)
{
lcd.print("0");
lcd.print(now.second(), DEC);
}
else
{
lcd.print(now.second(), DEC);
}
lcd.print(" ");
lcd.setCursor(12, 0);
lcd.print(t);
lcd.write(0b11011111);
lcd.print("C");
lcd.setCursor(0, 1);
if ( now.day() < 10)
{
lcd.print("0");
lcd.print(now.day(), DEC);
}
else
{
lcd.print(now.day(), DEC);
}
lcd.print("/");
if ( now.month() < 10)
{
lcd.print("0");
lcd.print(now.month(), DEC);
}
else
{
lcd.print(now.month(), DEC);
}
lcd.print("/");
lcd.print(now.year(), DEC);
lcd.print("");
lcd.setCursor(12, 1);
lcd.print(h);
lcd.print("%u");
delay(1000);
lcd.clear();
counter = counter + 1;
}
char key;
answerreceived = "";
}
}
